Introduction
Fiber Optical Cable is a cable with stable transmission quality that can be used in closed-circuit television systems, FTTH, core networks, and other fields. It is made of a high-quality wire core, which can fully optimize attenuation, and has precise geometric parameters, which can reduce welding loss and improve efficiency. Its main structure is a cargo jacket, steel-plastic composite belt, thickened steel wire, pure copper power wire, loose sleeve, fiber core, etc. The internal structure of light armor can effectively protect the internal wire core, making it very suitable for outdoor use, such as the connection between independent houses.
Features
1. Fiber Optical Cable uses high-quality PVC or LSZH material as the protective layer, greatly improving flame retardance and service life.
2. The parallel galvanized steel members on both sides of the optical cable can provide protection for the optical cable and avoid the effect of mechanical tension.
3. The transmission speed of pure copper power core is fast and stable, and it is very durable.
4. The loose tube is filled with a special waterproof compound, and the steel-plastic composite belt is waterproof and moisture-proof, so the waterproof property of the product is good.
Product Specification
Details of Mechanical Characteristic
Tensile(N) | Long term | 300 |
Short term | 660 | |
Crush(N/100mm) | Long term | 1000 |
Short term | 2200 | |
Min.Bending radius(H=Cable Height) | Long term | 20xH |
Short term | 10xH | |
Temperaure Range(℃） | -40~+60 | |
Geometrical Characteristic
Fiber Count | 1 | 2 | 4 |
Cable Diameter(mm) | 5.2x2.0 | 5.3x2.0 | |
Tolerance Range(mm) | +-0.1, or customized | ||
Cable Weight(Kgs/km) | 18 | 18 | 18 |
Packing

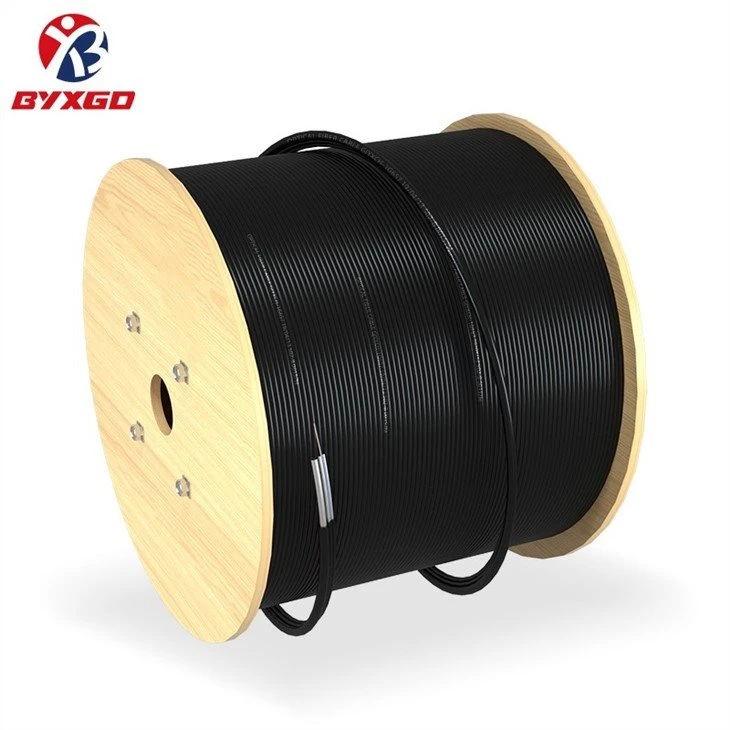

Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.
Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than
6000m with a tolerance.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1m of cable inner end should be reserved for testing.
Application
QA&QC
Storage,Handling and Transportation
Strategic partner with Babaolu
3,800 customers from more than 70 countries in the past 10 years.
Why choose us?
- We offer a convenient and hassle-free purchasing experience for all our FTTH Drop Cable products.
- After years of growth and development, we have accumulated a wealth of industry experience, and have a group of advanced production equipment and professional technicians, and strive to provide customers with satisfactory Fiber Optical Cable solutions.
- Trust us to provide you with the best FTTH Drop Cable products and services at an affordable price.
- Our standard procedures and good service consciousness developed over the years have been deeply rooted in our hearts and show our high business quality and management level.
- Our factory is your one-stop shop for all your FTTH Drop Cable needs.
- We adhere to the quality-oriented, efficiency first, continuous improvement, people-oriented management philosophy.
- Our factory is equipped with state-of-the-art machinery to produce the highest quality FTTH Drop Cable products.
- We have a dedicated customer service department and a professional sales and technical support team to provide a full range of pre-sales, in-sales, and after-sales services.
- At our factory, customer satisfaction is our top priority, and we strive to exceed your expectations.
- We have established a comprehensive pre-sales and after-sales service standards for our Fiber Optical Cable.
