Description

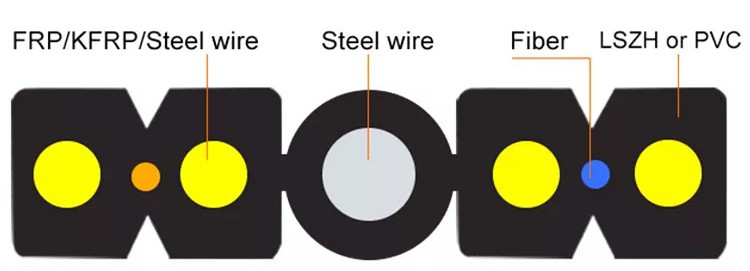

Our Fiber Cable Optic uses optical pulses generated by small lasers or light-emitting diodes to transmit communication signals, providing a way for light transmission. Its optical fiber unit is located in the center, two parallel strength members are placed on both sides, and steel wire is also used as additional strength member, and then the cable is completed with black HDPE sheath. In addition, it can be directly connected to the home for use, and its bandwidth, wavelength and transmission technology type are not limited.
Features
The shell of this Fiber Cable Optic is made of high fiber reinforced plastic, which is soft and flexible, easy to deploy and maintain, and ensures excellent electromagnetic resistance. At the same time, it has convenient data processing function, supports English and Chinese input function, and will automatically store data during use. In addition, it has high reliability, can stand by for an extra long time for 20 hours, and can be used in a wide range of working temperatures, making it applicable to various indoor and outdoor environments.
Product Specification
Details of Mechanical Characteristic
ITEMS | UNITS | SPECIFICATION |
Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
Mode Field Diameter | ㎛ | 8.6±0.5 |
Mode Field Concentricity | ㎛ | ≤0.8 |
Cladding Diameter | ㎛ | 125±1.0 |
Cladding Non-circularity | % | ≤1.0 |
Coating cladding concentricity error | ㎛ | ≤12.5 |
Coating Diameter | ㎛ | 245±10 |
Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
Proof Test | kpsi | ≥100 |
Items | Description |
No. of fiber | 4 |
Fiber model no. | Single mode or multimode |
Outer diameter of colour coating | 250±15um |
Dielectric strength member | KFRP, FRP or steel wire |
Jacket | LSZH or PVC |
Colour of Jacket | White or black |
Size of optical fiber cable(W*H) | 7.5±0.2㎜* 2.0±0.2㎜ |
Geometrical Characteristic
Fiber Count | 1 | 2 | 4 |
Cable Diameter(mm) | 5.2x2.0 | 5.3x2.0 | |
Tolerance Range(mm) | +-0.1, or customized | ||
Cable Weight(Kgs/km) | 18 | 18 | 18 |
Packing
Our cables are packed in wooden reel. During transportation, right tool should be used to avoid damaging the package, and handle carefully. Cables should be protected from moisture; Cables should be kept away from high temperature condition and spark; Cables should be protected from over bending and crushing; Cables should be protected from mechanical damage.

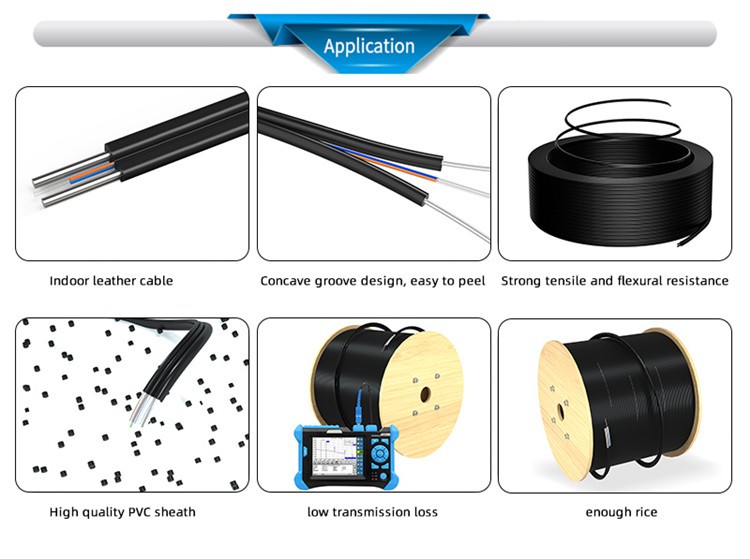

Application
QA&QC
Storage,Handling and Transportation
